主要特點

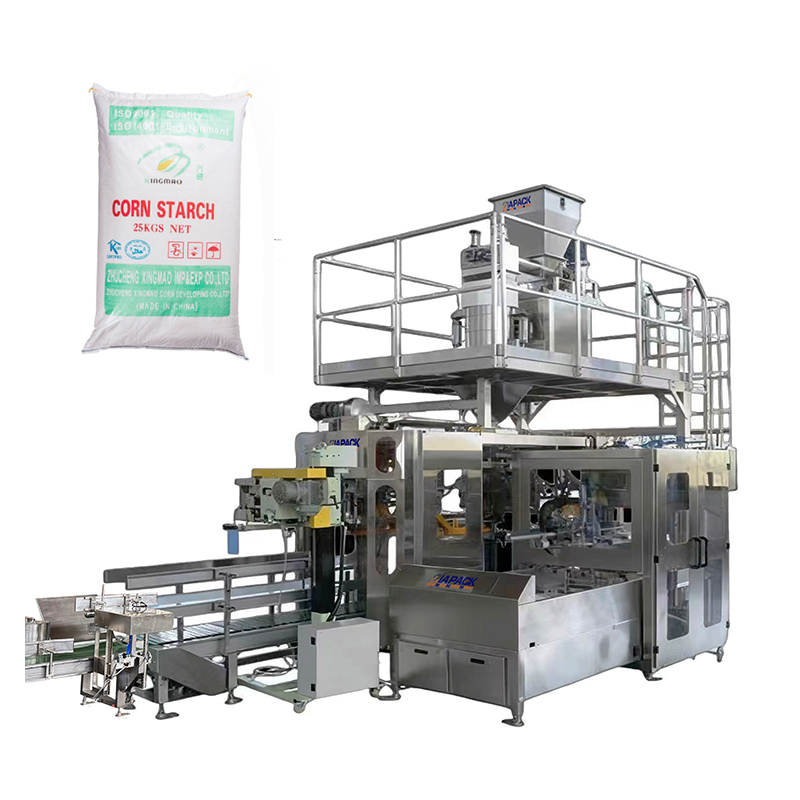

Automatic weighing, automatic bag loading, automatic bag sewing, no manual operation is required; Touch screen interface, simple and intuitive operation; The unit is composed of bag preparation warehouse, bag taking and bag handling device, bag loading manipulator, bag clamping and unloading device, bag holding pushing device, bag opening guiding device, vacuum system and control system;It has a wide adaptability to the packaging bag. The packaging machine adopts the bag picking method, that is, taking the bag from the bag storage, centering the bag, sending the bag forward, positioning the bag mouth, pre opening the bag, inserting the knife of the bag loading manipulator into the bag opening, and clamping the two sides of the bag mouth with air gripper on both sides, and finally loading the bag. This kind of bag loading method does not have high requirements on the size error of the bag manufacturing and the quality of the bag itself Low bag making cost; Compared with the pneumatic manipulator, the servo motor has the advantages of fast speed, smooth bag loading, no impact and long service life;
夾袋裝置開口位置安裝有兩個微動開關,用於偵測袋口是否完全夾緊,袋口是否完全打開。以確保包裝機不誤判,不灑料到地,提高包裝機使用效率及現場工作環境;
電磁閥等氣動元件均採用密封設計,不可外露安裝,可在粉塵環境中使用,從而確保設備具有較長的使用壽命。
技術參數
| 模型 | ZLH50D |
| 餵食方式 | Double horizontal screw feeding with weighing bucket |
| 包裝重量 | 25kg |
| 包裝精度 | ≤±0.5-1% |
| 包裝速度 | 2-4 bags/min |
| 電源 | 3P AC208-415V 50/60Hz |
| 總功率 | 5千瓦 |
| 壓縮的空氣 | 6kg/cm2 0.3cm3/min |
