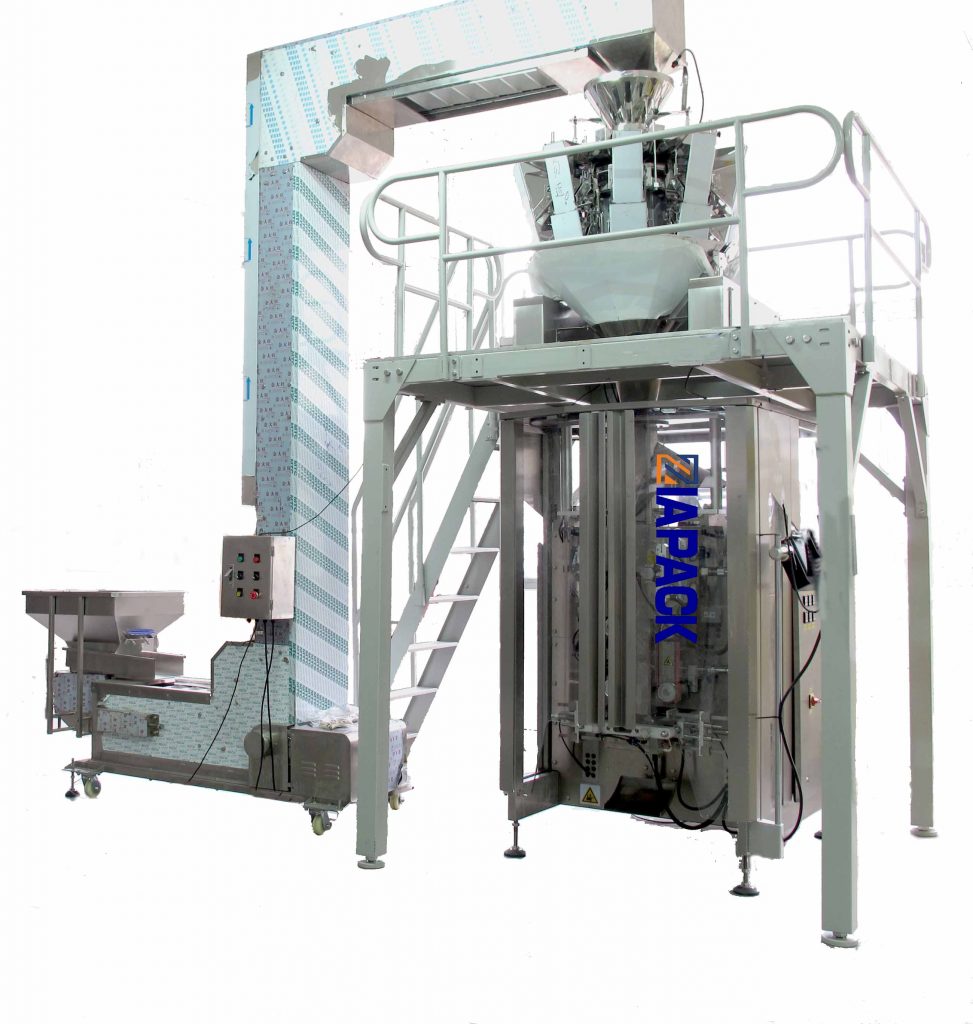

This machine can automatic realize functions of bag- making, filling, sealing, printing, cutting, etc. The finished bag with square bottom and vertical side .Can be stand on the table with pretty shape .This packaging machine adopts import servo motor for film feed and the man-machine interface uses advanced touch screen. Operation simpler and more convenient .All of the components adopts international famous brand, PLC is SIEMENS, servo motor is PANASONIC, touch screen is SIEMENS, cylinder and air valve is SMC. parts which contact with material 、control cabinet 、main frame are made of stain less steel304
技術參數：
Packing speed(MAX): 20-30 bags/min(depend on the weight from 250 gram-1000 gram)

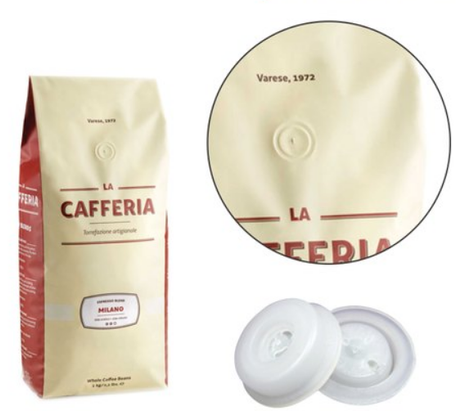

Bag type: Square bottom bag (gusseted bag with square bottom )
Bag size: Front width: 80～190 mm; Side width: 25～60 mm Length: 100～380 mm
耗氣量：0.6MPa 350L/min
Electric requirement: 380V/5.5 kW 50 Hz
特徵 ：
Film transport system and horizontal Jaw motion both drive by Panasonic motor
只需拉出支架即可安全快速更換管子和套環
光電子學檢測衣領上的膠片位置以糾正膠片偏移
電子光電傳感器感應色碼控製袋長
獨特的氣動薄膜捲軸鎖定結構，避免薄膜拉伸偏轉
獨立溫度調節
PE/BOPP、CPP/BOPP、CPP/PE PE/NYLON、
鋁箔基可以在機器上運行。
該包裝機通過更換相應的設備也可用於聚乙烯薄膜封口
