介紹 ： This unit machine is special design for packaging pellets tea into small pillow bag with tiny weight .With function of tea pellets feeding,weighing, Automatic bag forming sealing and output .The main machine has function of bag counting and date coding .

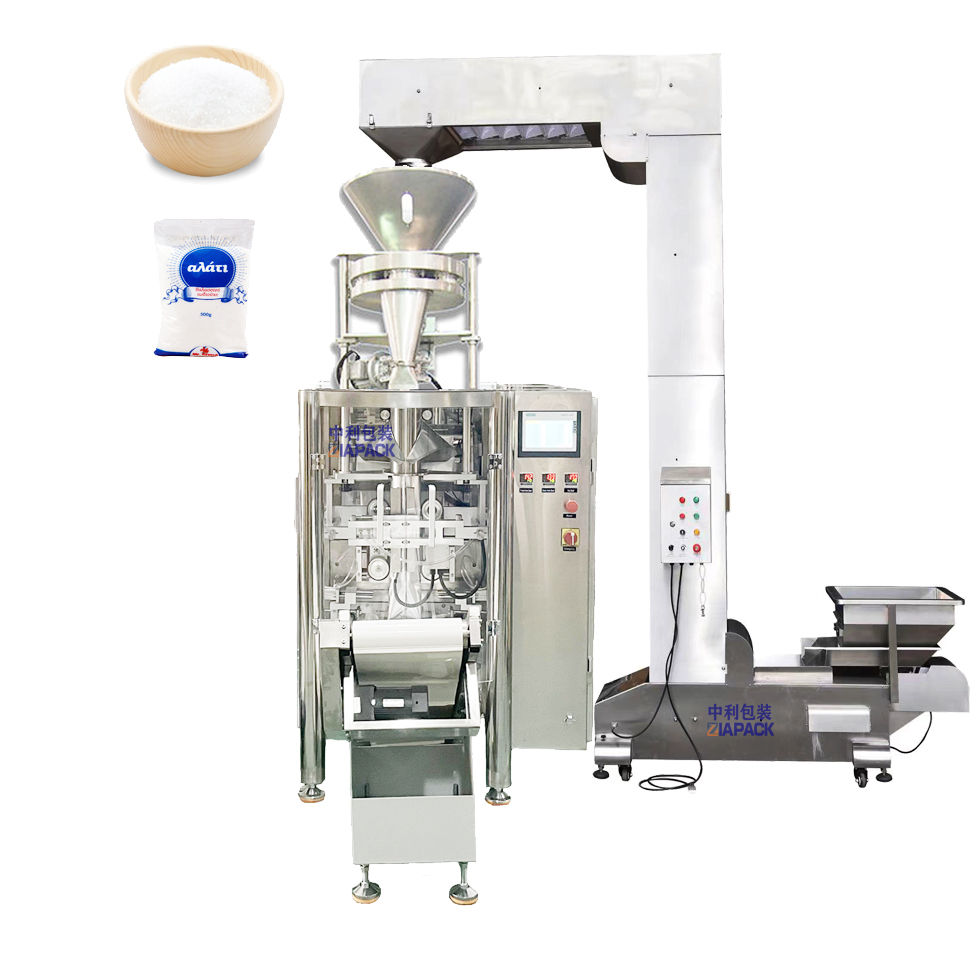

ZL320 Vertical bag forming filling sealing packaging machine
The whole machine frame made by Stainless Steel 304, All Material contact part made by SUS304 .This machine equipped with bag-making, cutting, code printing , bag counting ,bag sealing and bag dropping .According client requirement can add bag pressing ,make gusseted bag ,making flat bottom bag etc.Adopt SIEMENS PLC and Touch Screen，Panasonic servo motor, Japanese Photo Sensor , SMC electromagnetic valve . The machine performance is stable .It is a best choice for improve the automation of modern factory .
技術參數：
Weighing Range:10-500gram
Packaging Speed:30-60bags/min
Bag size: (80-220)*(60-150)mm(L*W)
Film roller width :320mm
空氣要求：0.6Mpa 0.65m³/min
outer diameter: 300mm
內徑：75mm
inner weight: 300kg
Power source: 3.5kW 380V±10% 50Hz
主要特點和特點
各種袋子：枕式袋，可以通過更換裝置製作插角袋，平底袋
高速：大於20-60袋/分鐘
操作方便：PLC控制器和彩色觸摸屏，觸摸屏故障指示。
易於調整：僅需約10分鐘即可更換不同的袋子。
頻率控制：速度可在該範圍內通過頻率轉換進行調節。
高自動化：在稱重和包裝過程中無人值守，故障時機器自動報警。
安全衛生
沒有膠片，機器會報警。
機器報警並在氣壓不足時停止。
安全開關，安全開關，機器報警和安全防護裝置打開時停止的安全防護裝置。
衛生結構，產品接觸部位採用SUS304不銹鋼
