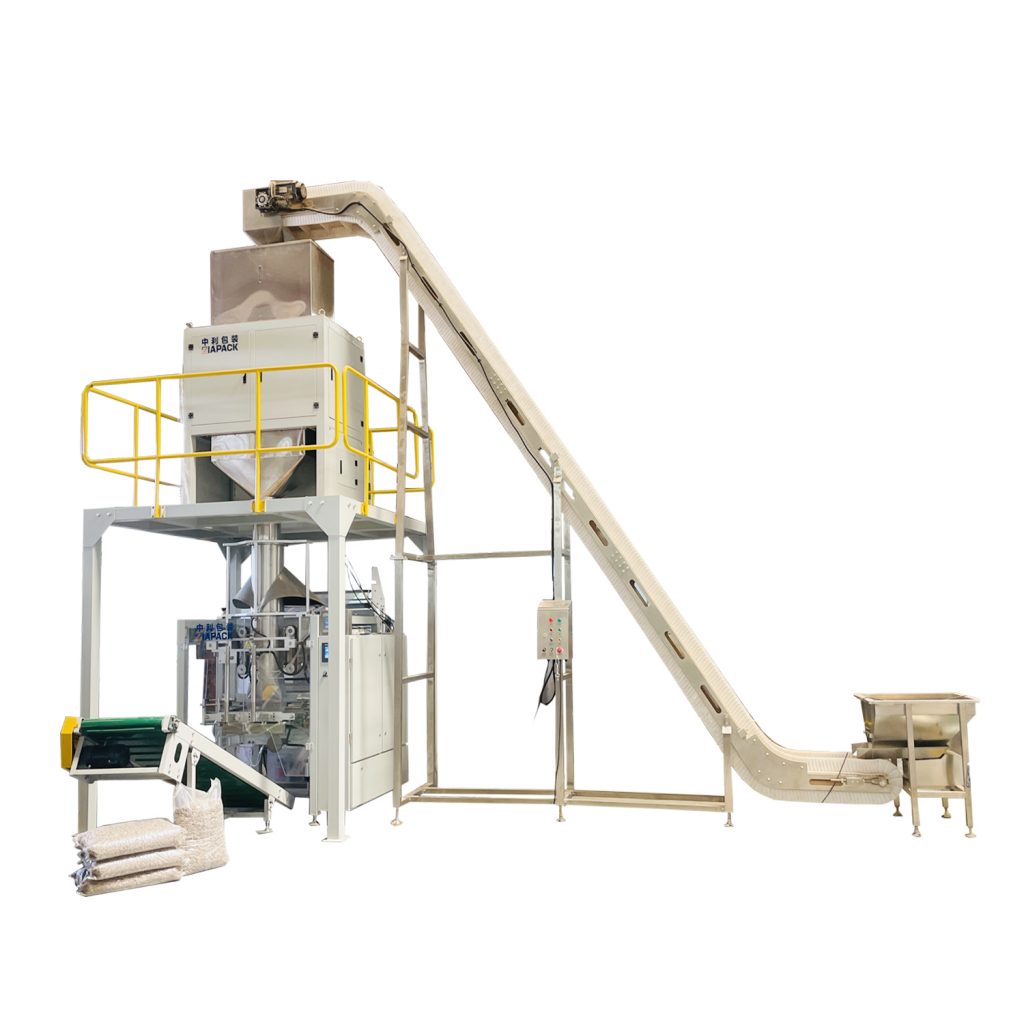

15公斤木顆粒VFFS袋成型灌裝封口裝袋機

Automatic15-20 kg wooden pellets bag forming filling packaging machine

介紹 ：

This unit machine is special design for packaging small piece products like nuts dates,chips, wooden pellets fertilizer and so on .The whole machine body made by SUS304 .Including product weighing filling machine ,VFFS bag forming sealing packaging machine ,one set platform for weighing machine and output conveyor for transfer the finished bag.According client requirement we can add handle hole punching device .

技術參數：

Weighing Range: 1kg-5kg

Packaging Speed:12-30 bags/min

Bag size: (150-420)*(120-350)mm(L*W)

Max film width:720mm

壓縮空氣要求：0.6Mpa 0.65m³/min

Reel outer diameter: 450mm

鐵芯內徑：75mm

Machine weight: 950kg

Power source: 6.5kW 380V±10% 50Hz

主要特點和特點：

• 範圍廣泛的小袋：枕頭袋和插角袋。
• 高速：20-50袋/分鐘
• 操作方便：PLC控制器和彩色觸摸屏，觸摸屏故障指示。
• 易於調整：僅需約10分鐘即可更換不同的袋子。
• 頻率控制：速度可在該範圍內通過頻率轉換進行調節。
• 高自動化：在稱重和包裝過程中無人值守，故障時機器自動報警。
• 安全衛生：
• 沒有膠片，機器會報警。
• 機器報警並在氣壓不足時停止。
• 安全開關，安全開關，機器報警和安全防護裝置打開時停止的安全防護裝置。
• Hygienic construction, the product contact parts are adopted sus316stainless steel.

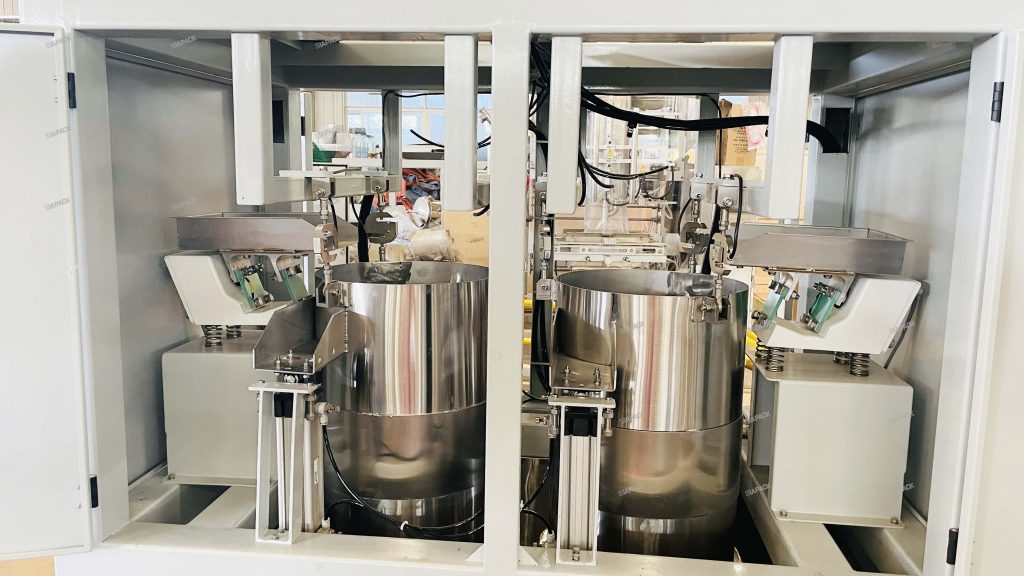

• ZLC2-15k double bucket weighing machine

  介紹 ：

  This linear weight is dosing system for Free Flow Powders .Such as Detergent, Sugar, Salt, Spices, Milk powder various sorts of powders, etc. Also it is suitable for dosing granule products such as Coffee beans, Rice, Sesame Seeds, and Small Granules etc. Dry & Processed Foods: Snack foods, Cereal & Health Foods,Biscuits & Bakery, pasta, Grated Cheese, Nuts, Dried fruits, Pet Food

  特徵：

  1. 7” color touch screen with multi-language operating system. Software can be upgraded through USB.
  2. SUS304 material contact part ,Machine frame made by painted steel.High performance ondust and water proof design.
  3. Restoration function of factory parameter. 99 product parameters can be preset to meet different parameter program requirements.
  4. Amplitude can be automatically adjusted for easy operation.
  5. Each hopper can be used as single weigher.
  6. 6. With cylinder controlfor door open-close control , which is faster and more stable.
  7. 7. Modular control system for easy maintenance and cost-saving.

  Parameter:

  Weighing range :10-15kg

  Accuracy :±0.5-0.8%

  Min scale :0.1gram

  Max speed :20-40bag/min

  HIM:7” touch screen

  Power supply :AC220±10% 50HZ /60HZ 1KW
