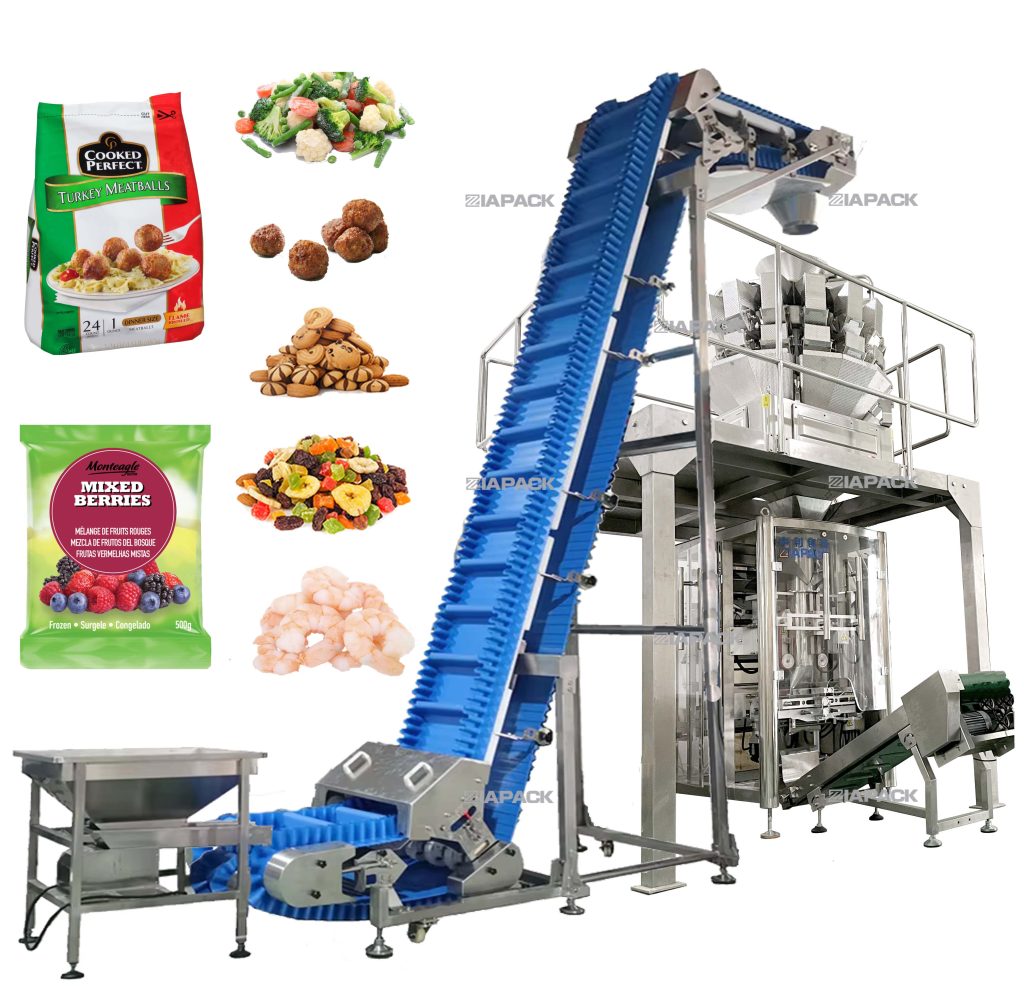

Automatic frozen food weighing filling packaging machine

介紹 ：

This unit machine is special design for packaging frozen food like shrimp ,meat ball,Chicken pieces dumpling and Toufu in to plastic bag .The whole machine have the function of automatic product feeding ,weighing ,film bag forming ,bag sealing ,Including date coding ,bag counting .The finished bag is output from conveyor machine which no need manual collect the bag and avoid the bag polluting .

應用：

This weighting machine r is suitable for weighing different frozen food  like frozen fishes, fruit, frozen dumplings, rice dumplings, etc.,Adopt Dimple Plate and waterproof electric cabinet .Can Work in an environment with high humidity.

特徵：

1. Special load cell with high precision and high standard.
2. Program recovery function can reduce operation failures, support multi-segment weight calibration.
3. No products auto pause function can improve weighing stability and accuracy.
4. Linear amplitude can be adjusted independently, can make the feeding more uniform.
5. 15 languages available for global markets.
6. 100 programs capacity can meet various weighing requirement, user-friendly help menu in touch screen contributes to easy operation.

Mechanical  Character:

1. Ip65 cabinet design, dimple plate for food contact parts.
2. Air pressure system built in cabinet prevents the electronic components from damage because of humidity.
3. Uniform design standards contribute to better interchangeability for spare parts.
4. The whole cast aluminum thickening machine case enhanced the strength of the machine, and shorten sample stable time.
5. Optional weighing type material detection, accurate control of feeding time, material thickness, to ensure the accuracy of the weighing.

產品規格：

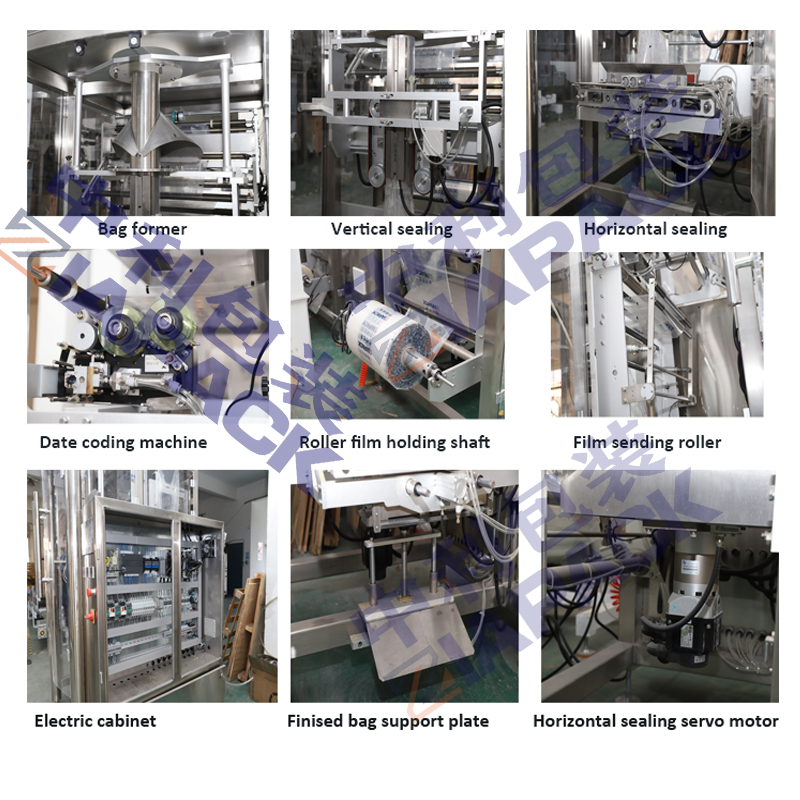

ZL520 VFFS BAG FORMING FILLING PACKAGING MACHINE

介紹 ：

本機可自動實現製袋、充填、封口、印刷、分切等功能。本機可自動完成製袋充填封口。

該包裝機採用進口伺服電機送膜，人機界面採用先進的觸摸屏。操作更簡單方便。所有部件均採用國際知名品牌，PLC為西門子，伺服電機為松下，觸摸屏為西門子，氣缸和氣閥為SMC。與物料接觸部分、控制櫃、主機架均採用304不銹鋼製造

技術參數：

包裝速度(MAX): 20-50bags/min

袋型: 枕袋.插角袋

Bag size: bag width 60-250mm bag length 80-350mm

耗氣量：0.6MPa 350L/min

電力要求：380V/5.5 kW50 Hz
