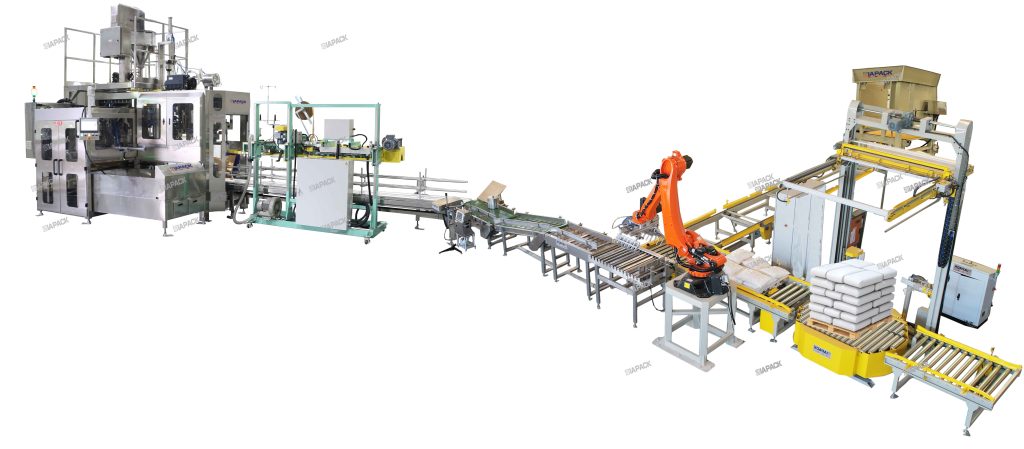

This line is special design for automatic weighing the bulk powder filling bagging in to 15-25kg karft paper bag then sealing the bag .According the client requirement we also need offer the automatic weight check ,metal detector and palletizing .The seller completed the design, manufacturing and supply of the production line in strict accordance with the technical requirements and combined with its own packaging line design experience in the sugar industry.
Open Mouth Bag Placer,Filler&Closer(散裝產品)
套袋技術發展最先進的成果,滿足中等流量特性的顆粒狀和粉末固體產品的所有需求,廣泛應用於食品,化工,農業,製藥等行業。
袋子放置器和填充口
袋子放置器將具有或不具有角撐板的不同尺寸的空袋轉移到填充口,其中由於其橢圓形設計,密封閉合允許在填充期間排空空氣。動力裝置放置在嘴部區域之外,以避免灰塵和/或腐蝕性氣氛。
特徵
10-25kg包裝,容量1000袋/小時(根據不同的袋子,原料)
- 適用於紙袋,PE袋,編織袋。紙袋和編織袋可採用縫紉密封(DS-8C)。 PE袋採用熱封(HS-22D)。(根據客戶要求最終決定。)
- 檢測器的雙重確認檢測到空袋放置過程。當出現洩漏或沒有打包時,灌裝過程自動停止。
- 自動送袋機由臥式3個單元組成,每個單元可存放100個袋子(PE袋),適合高速生產。
- 全自動運行。
- 螺旋料斗(可選),空氣滑槽(可選)中的附加中間阻尼器,以防止產品飛濺,促進除塵效果。
- 非針孔袋的振動排氣裝置是可選的,以消除產品中的剩餘空氣。
技術數據
包裝材料:1。編織袋(覆膜)2。牛皮紙袋3.塑料複合膜(厚度大於0.18 mm)
封裝尺寸(單位:mm):( 700-1100)×(480-650)L×W
包裝重量:25-50公斤/袋
測量精度:±50g
Speed:1-3packs / minute (depending on packaging materials, bags and other dimensions may vary slightly)
供氣:約0.5~0.7Mpa
功率:約6.5 KW 380±10%50HZ
尺寸(單位:mm):5700×2800×2100(長×寬×高)
密封:1。編織袋:盧拉折疊/縫合
2個牛皮紙袋:密封/接縫
3複合膜袋:密封
